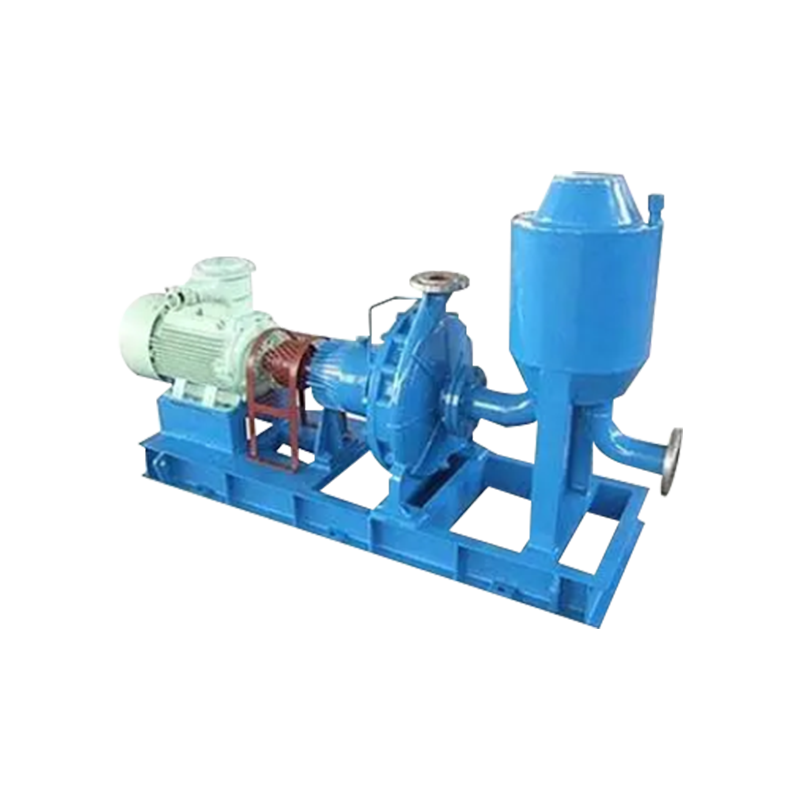

Self-Priming Pump

How Self-Priming Pumps Work

Self-priming pumps operate using a combination of centrifugal force and a unique design feature that allows them to handle air and fluid mixtures effectively. Here’s a brief overview of how they function:

Initial Fill: When started, the pump may need to be filled with liquid. Once filled, it can begin to create suction.

Fluid Movement: As the impeller spins, it creates a low-pressure area, drawing liquid into the pump while simultaneously expelling any air trapped in the system.

Continuous Operation: Once primed, the pump can maintain suction even if the fluid level drops or if there is air in the suction line. It can effectively manage both fluid and air, which is a key advantage over standard centrifugal pumps。

Applications of Self-Priming Pumps

Self-priming pumps are versatile and can be used in various applications, including:

Water Transfer: Ideal for transferring water from wells, tanks, or other sources, especially when the water level fluctuates.

Sewage and Wastewater: Commonly used in wastewater treatment plants and sewage systems to handle liquids containing solids and gases.

Chemical Processing: Useful in industries that require the movement of corrosive or viscous fluids, as they can handle a wide range of liquids.

Irrigation: Employed in agricultural applications for pumping water from rivers or reservoirs to fields.

Advantages of Self-Priming Pumps

Ease of Use: Self-priming pumps eliminate the need for manual priming, making them user-friendly and efficient.

Versatility: They can handle various fluids, including those with solids or gases, expanding their application range.

Cost-Effective: Reducing the need for additional equipment for priming can lower overall costs in many systems.

Reliability: These pumps are designed to function in conditions where traditional pumps might fail, providing consistent performance.

Conclusion

Self-priming pumps are a valuable asset in many industries due to their unique ability to handle fluid and air mixtures without manual intervention. Their efficiency, reliability, and versatility make them an choice for various applications, from water transfer to chemical processing. Understanding how these pumps work and their benefits can help users make informed decisions when selecting the right pump for their needs.

To ensure the normal operation of the self-priming pump, the following points should be noted:

1. Install the pump as close to the water source as possible.

2. Keep the total length of the suction pipe within 25 feet (7.6 meters).

3. Use a suction line that matches the size of the pump inlet flange.

4. Do not install a foot valve on the suction line.

5. For smooth water intake, position the suction inlet at least 1.5D above the bottom of the container.

6. Install a drain valve and drain line at a high point in the discharge line to allow air to be expelled easily.

Selection Data

The performance curve of a self-priming pump typically displays not only the pump's operating performance but also the self-priming time curve. When determining the pump model based on flow rate, head, and speed, the self-priming time can be directly identified. Just as performance varies with changes in speed and impeller diameter, self-priming time also changes with these parameters. The self-priming height, fluid-specific gravity, and inlet pipe diameter directly affect self-priming time.

Self-Priming Height (Static Suction Lift)
The higher the self-priming height, the more air needs to be expelled, resulting in longer self-priming time. For instance, a pump with a 13-inch impeller requires 18 seconds of self-priming time at a lift height of 10 feet (3 meters), whereas at a self-priming height of 15 feet (4.6 meters), it takes 30 seconds.

Specific Gravity
The greater the specific gravity of the medium, the longer the required self-priming time. For example, a medium with a specific gravity of 1.4 takes the same self-priming time of 26 seconds at a lift of 10 feet (3 meters) as water (specific gravity 1.0) at 14 feet (4.3 meters). (For specific gravities less than 1.0, calculations are made as if the specific gravity were 1.0.) Since the actual limit for self-priming height is 20 feet (6.1 meters), when the specific gravity exceeds 1.0, the actual high self-priming height can be calculated by dividing the limit of 20 feet (6.1 meters) by the specific gravity. For example: 20 feet (6.1 meters) ÷ 1.4 = 14.3 feet (4.4 meters).

Inlet Pipe Diameter
The principle of self-priming is to expel air from the inlet pipe, thereby obtaining self-priming capability. The self-priming curve is based on the self-priming height in the inlet pipe and the air contained in the horizontal section of the pipe 3 feet (1 meter) before the pump inlet. According to the graph, if the self-priming height is 10 feet (3 meters) and the horizontal pipe before the pump inlet is 3 feet (1 meter), the internal air volume is 1150 cubic inches. If the horizontal pipe before the pump inlet is extended to 9 feet, the internal air volume will increase by 500 cubic inches. Therefore, the self-priming time will become 1650/1150 × 18 seconds = 26 seconds, which is 8 seconds longer than the standard self-priming time.
