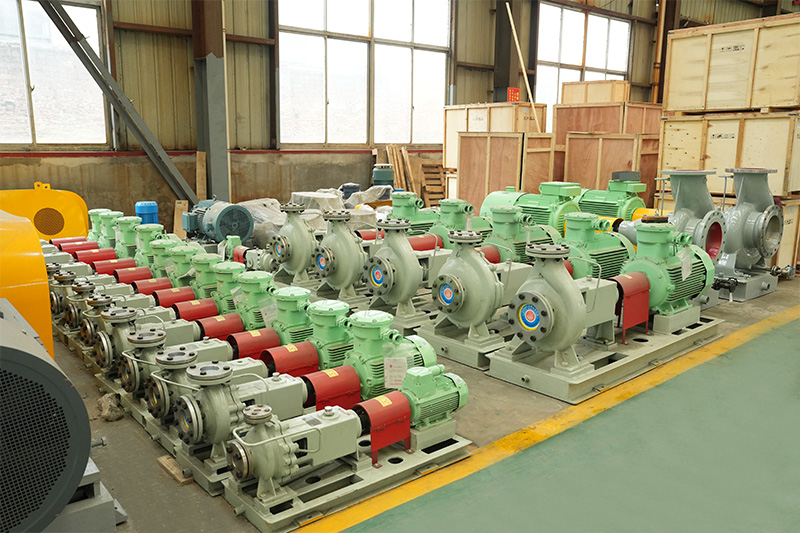

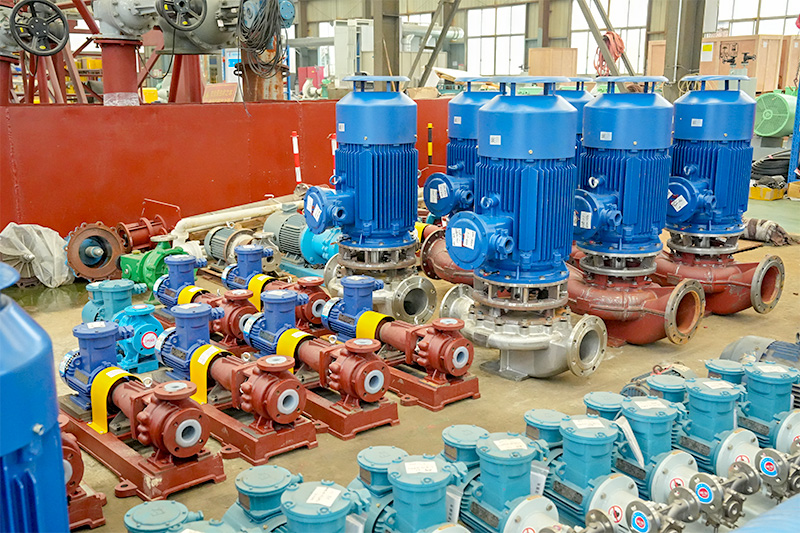

FSB Fluoroalloy Centrifugal Pump

FSB fluoroplastic alloy pump performance parameter table

Fsb fluoroplastic alloy is the positive corrosion-resistant material in the world today. Our company uses this material to produce FSB and FSB-D series fluoroplastic alloy centrifugal pumps, which have extremely strong corrosion resistance, high mechanical strength, no aging, and no It decomposes toxins and can transport acids, alkalis, oxidants, and other highly corrosive media of any concentration, so it is widely used in chemical, petroleum, pharmaceutical, pesticide, smelting, dye, papermaking, electroplating, food and other industries.

FSB pump use, installation, and precautions

1. The pump and motor should be inspected before installation. All parts should be intact and there should be no debris in the pump.
2. Place the pump in a horizontal position, connect the inlet and outlet pipes, and turn on the power supply. Then turn the coupling by hand. Check whether there is any friction. If the rotation is easy and even, the installation is complete.
3. The steel of plastic alloy pumps is poorer than that of metals, so the weight of the pipeline cannot be directly pressed on the pump body. The inlet and outlet pipelines should be supported by additional brackets. Pumps with high lift should also be equipped with a check valve at the outlet to prevent sudden changes. Shutdown water hammer damage.
4. All joints must be kept sealed to prevent air leakage and liquid from affecting the performance of the pump.
5. If any vibration or abnormal sound is found during operation, the machine should be stopped immediately to check the cause. The machine can only work after the problem has been eliminated.

This pump is all designed and optimized using computers. The company has strong technical support, rich production experience, and complete testing methods to ensure stable and reliable product quality.

Starting and stopping
1. Fill the water pump with enough liquid (prime the liquid).
2. Check whether the oil level in the oil chamber of the bracket is within the specified range.
3. Check the running direction of the motor. Adjust the rotation mark of the pump.
4. Close the outlet valve and pressure gauge cock.
5. Start the motor. Open the pressure gauge cock. Slowly open the outlet valve. When the pressure
6. During an important shutdown, close the water outlet valve and then cut off the power supply.
When the pointer of the force meter points to the required position, stop adjusting the size of the water outlet valve.

Fluoroplastic alloy centrifugal pump model meaning
50FSB-30DL
50 represents the suction port diameter (mm)
FS represents that the material of parts in contact with the medium is fluoroplastics
B stands for single-stage single-suction cantilever centrifugal pump
30 represents the head (m)
D stands for short bracket connection type
L stands for shaft connection (with bottom plate)
Fluoroplastic alloy centrifugal pump product features:

FSB-type fluoroplastic alloy pump consists of a pump body, impeller, cover, seals, bracket, pump shaft, coupling, lifting bolts, nuts, base plate, etc.

1. Pump body: One steel flange ring embedded in the left and right connecting parts is molded into plastic alloy. It has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise, high mechanical strength, no aging, no toxin decomposition, convenient maintenance, smooth flow path, high efficiency, and energy saving.

2. A piece of stainless steel (1Cr18Ni9Ti) is embedded in the right side of the gland and is made of plastic alloy.

3. Impeller: The shaft connection method is adopted. The metal shaft is processed from a high-quality steel round and then wrapped with fluoroplastic and pressed at high temperature to make the impeller and the metal shaft firmly integrated to ensure that the shaft root and the rear part of the impeller can withstand the torque during rotation—force, so that the medium flow part is made of plastic alloy.

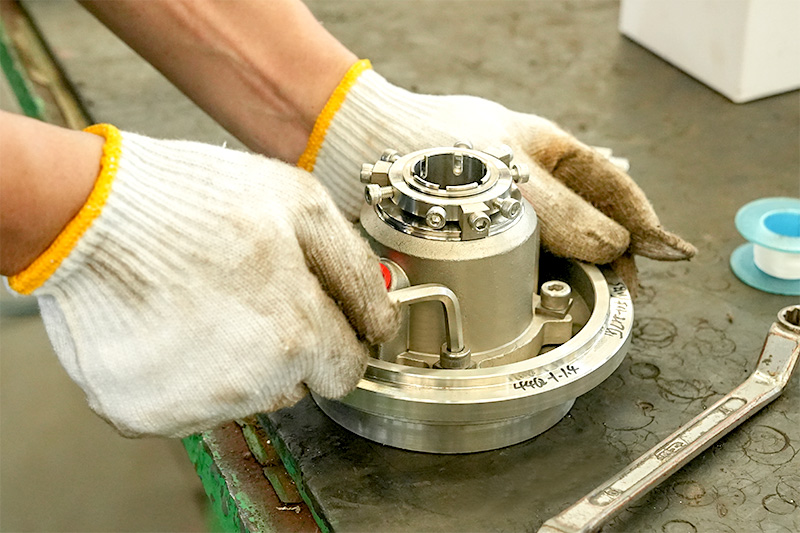

4. Mechanical seal: It adopts WB2 type and ST type adjustable single-end mechanical seal technology that does not require cooling water. It is made of silicon carbide, high-purity alumina ceramics, filled with PTFE, graphite and other materials.

Disassembly and installation of the FSB pump

Pump disassembly

1. The pump and motor are connected with a claw coupling. When disassembling, loosen the four connecting bolts between the bracket and the base to detach the pump from the motor.

2. Loosen the connecting bolts on the back cover of the pump body. Use a wooden handle to tap the pump body to disengage it lightly.

3. Loosen the lifting bolts in the coupling that connect the impeller shaft to the pump shaft through the Morse taper.

4. Loosen the mechanical seal moving! Without fixing the screw, use a wooden hammer to lightly hit the hanging bolt in the center of the coupling. Loosen the Morse taper of the impeller shaft and pump shaft and pull out the impeller, back cover, and seal moving ring. Loosen the back cover. Remove the upper gland screw and break it.

5. Loosen the left and right gland screws of the pump shaft. Take out the pump shaft, and bearings, and clean the bracket oil chamber.
