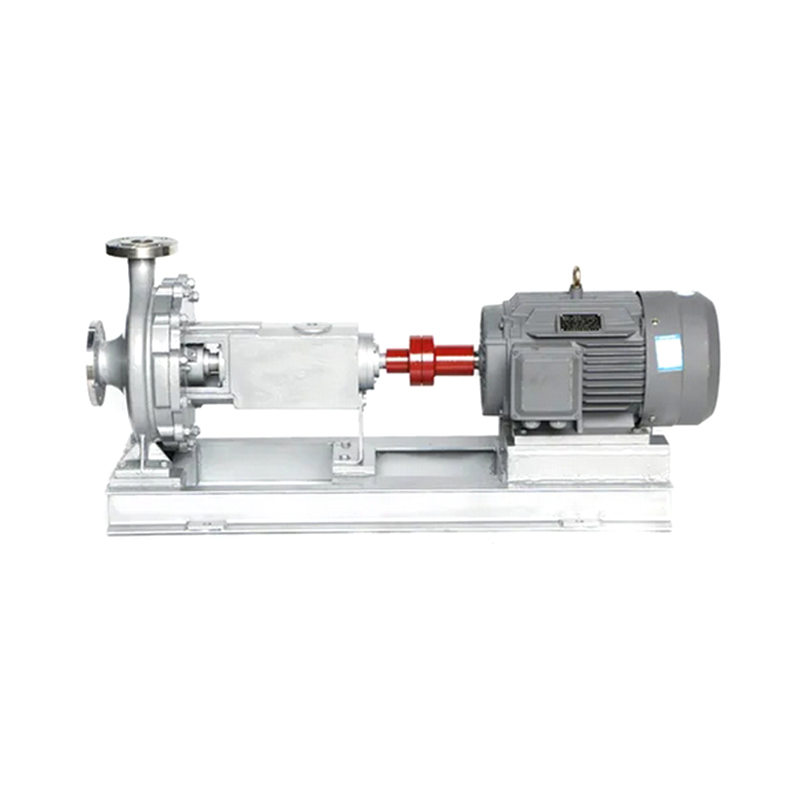

HJ Chemical Process Pump

1. Overview of the HJ chemical process pump HJ corrosion-resistant chemical process pump is a single-stage single-suction cantilever centrifugal pump. Its marking, rating characteristics, and dimensions all comply with the GB5662-1985 standard, which is equivalent to ISO2858-1975. It is the same type as the IH-type pump promoted by the country.  HJ chemical process pump parts in contact with the medium are commonly used cast iron, cast steel, 2Cr13, 0Cr18Ni9, 1Cr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 40Cr, Monel, 1Cr18Ni12Mo2Ti, Ti (titanium), 00Cr17Ni12Mo2Ti, Hastelloy B alloy, 0Cr25Ni20, F5 Series alloy, 20 alloy steel, 0Cr25Ni6Mo3Cu2Mn2Si and other materials. The shaft seal adopts a mechanical seal, dynamic seal, and packing seal. Users can choose arbitrarily according to the actual working conditions.   2. Application of HJ chemical process pump Paper industry: transportation of pulp cooking liquor and bleaching liquor. Iron and steel industry: electroplating, pickling, waste acid treatment. Alkali production industry: ammonia salt solution produced by soda ash and ammoniacal alkali, room temperature caustic soda produced by chloralkali, chlorine products, and chlorates, hypochlorites Nonferrous metallurgy: transportation of electrolytes for copper and nickel electrolysis, acid mist liquid for cobalt production, ore slurry for zinc production, ammonium vanadate for vanadium production, acid and thiourea liquid for gold production, etc. Petrochemical industry: petroleum refining, acetaldehyde, and manufacturing of alkyl benzene. Acid industry: nitric acid, sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, etc. Pharmaceutical industry: production of medicines and pesticides. Synthetic fiber and plastic industry: production of polyester, polyvinyl chloride, textile, printing and dyeing industry. Fertilizer industry: production of urea and ammonium nitrate. Environmental protection: transportation of acid mist liquid.
Get A Quote
PREV：IH Type Horizontal Chemical Centrifugal Pump
NEXT：CZ Standard Chemical Process Pump
  • Introduction
  • Parameter
  • Product Configuration Table
  • Pump type Flowrate Q Lift H Speed n Power P(kw) Efficiency η Required cavitation allowance
    (NPSH)(m)
    (m³/h) (L/S) (m) (r/min) Shaft power Motor power (%)
    HJ32-20-125 3.2 0.88 20 2900 0.48 Select according to the specific gravity and viscosity of the liquid 35 5
    HJ32-20-160 3.2 0.88 32 0.93 30 3.5
    HJ32-20-200 3.2 0.88 50 1.62 27 4
    HJ32-20-250 3.2 0.88 80 4.1 17 4.5
    HJ40-20-125 6.3 1.74 20 0.66 52 5
    HJ40-20-160 6.3 1.74 32 1.53 36 3.5
    HJ40-20-200 6.3 1.74 50 2.52 34 3.5
    HJ40-20-250 6.3 1.74 80 5.3 26 4.5
    HJ50-32-125 7.5 2.08 23 2900 1.09 43 2
    12.5 3.47 20 1.33 51 2
    15 4.17 18 1.5 49 2.5
    HJ50-32-125A 6.8 1.89 18.8 2900 0.87 40 2
    11.3 3.14 16.4 1.01 50 2
    13.6 4.17 14.7 1.16 47 2.5
    HJ50-32-125 3.75 1.04 5.75 1450 0.16 36 1
    6.3 1.74 5 0.19 45 1
    7.5 2.08 4.5 0.21 44 1.2
    HJ50-32-125A 3.4 0.94 4.7 1450 0.13 33.3 1
    5.7 1.59 4.1 0.149 43 1
    6.8 1.89 3.7 0.163 42 1.2
    HJ50-32-160 7.5 2.08 34.5 2900 2.13 33 2
    12.5 3.47 32 2.37 46 2
    15 4.17 30 2.45 50 2.5
    HJ50-32-160A 6.8 1.89 28.5 2900 1.76 30 2
    11.3 3.14 26.4 1.85 44 2
    13.6 3.78 24.8 1.91 48 2.5
    HJ50-32-160 3.75 1.04 8.6 1450 0.3 29 1
    6.3 1.74 8 0.34 40 1
    7.5 2.08 7.5 0.36 43 1.2
    HJ50-32-160A 3.4 0.94 7.1 1450 0.253 25.9 2
    5.7 1.59 6.6 0.277 37.1 2
    6.8 1.89 6.2 0.28 41 2.5
    HJ50-32-200 7.5 2.08 51.8 2900 3.78 28 2
    12.5 3.47 50 4.36 39 2
    15 4.17 48 4.56 43 2.5
    HJ50-32-200A 6.8 1.89 42.7 2900 3.16 25 2
    11.3 3.14 41 3.24 38 2
    13.6 3.78 39.5 3.57 41 2.5
    HJ50-32-200 3.75 1.04 12.9 1450 0.57 23 1
    6.3 1.74 12.5 0.65 33 1
    7.5 2.08 12 0.68 36 1.2
    HJ50-32-200A 3.4 0.94 10.6 1450 0.488 20 1
    5.7 1.59 10.3 0.516 31 1
    6.8 1.89 9.9 0.54 34 1.2
    HJ50-32-250 7.5 2.08 2900 7.28 23 2
    12.5 3.47 80 8.25 33 2
    15 4.17 78.5 8.79 36.5 2.5
    HJ50-32-250B 7 1.94 71.9 2900 6.84 20 2
    11.7 3.25 70 6.97 32 2
    14 3.89 68.8 7.71 34 2.5
    HJ50-32-250 3.75 1.04 20.5 1450 1.23 17 1
    6.3 1.74 20 1.27 27 1
    7.5 2.08 6.2 1.29 31 1.2
    HJ50-32-250A 3.51 0.98 18 1450 1.12 15.4 1
    5.9 1.64 17.5 1.125 25 1
    7.02 1.95 17.2 1.18 27.9 1.2
    HJ65-50-125 15 4.17 21.3 2900 1.85 47 2
    25 6.94 20 2.2 62 2
    30 8.33 18.6 2.4 63 2.5
    HJ65-50-125A 13.6 3.78 17.6 2900 1.48 44 2
    22.7 6.31 16.5 1.67 61 2
    27.3 7.58 15.4 1.91 59.9 2.5
    HJ65-50-125 7.5 2.08 5.4 1450 0.25 44 1
    12.5 3.47 5 0.31 55 1
    15 4.17 4.5 0.33 56 1.2
    HJ65-50-125A 6.8 1.89 4.5 1450 0.23 41 1
    11.3 3.14 4.1 0.234 54 1
    13.6 3.78 3.7 0.258 53 1.2
    HJ65-50-160 15 4.17 34.2 2900 3.18 44 2
    25 6.94 32 3.82 57 2
    30 8.33 30 4.15 59 2.5
    HJ65-50-160A 13.6 3.78 28.4 2900 2.56 41 2
    22.7 6.31 26.5 2.93 56 2
    27.3 7.58 24.8 3.29 56 2.5
    HJ65-50-160 7.5 2.08 8.55 1450 0.45 39 1
    12.5 3.47 8 0.53 51 1
    15 4.17 7.5 0.58 52.5 1.2
    HJ65-50-160A 6.8 1.89 7.09 1450 0.37 35.5 1
    11.3 3.14 6.6 0.41 49.6 1
    13.6 3.78 6.2 0.46 49.9 1.2
    HJ65-40-200 15 4.17 53.2 2900 5.3 41 2
    25 6.94 50 6.55 52 2
    30 8.33 47.6 7.27 53.5 2.5
    HJ65-40-200A 13.6 3.78 43.9 2900 4.28 38 2
    22.7 6.31 41 5.07 50 2
    27.3 7.58 39.3 5.73 51 2.5
    HJ65-40-200 7.5 2.08 13.3 1450 0.78 35 1
    12.5 3.47 12.5 0.93 46 1
    15 4.17 11.9 1.02 47.5 1.2
    HJ65-40-200A 6.8 1.89 11 1450 0.64 31.8 1
    11.3 3.14 10.3 0.72 44 1
    13.6 3.78 9.8 0.81 44.8 1.2
    HJ65-40-250 15 4.17 81.2 2900 9.76 34 2
    25 6.94 80 11.84 46 2
    30 8.33 78.4 12.8 50 2.5
    HJ65-40-250A 14 3.89 71 2900 8.73 31 2
    23.4 6.5 74.8 10.6 45 2
    28 7.78 68.6 11.13 47 2.5
    HJ65-40-250B 13.2 3.67 62.8 2900 7.29 31 2
    22 6.11 61.8 8.42 44 2
    26.4 7.33 53 8.45 45 2.5
    HJ65-40-250 7.5 2.08 20.3 1450 1.48 28 1
    12.5 3.47 20 1.75 39 1
    15 4.17 19.6 1.86 43 1.2
    HJ65-40-250A 7 1.94 17.8 1450 1.35 43 1
    11.7 3.25 17.5 1.47 25 1
    14 3.89 17.2 1.64 37.9 1.2
    HJ65-40-315 15 4.17 126.8 2900 18.5 40 2
    25 6.94 125 21.8 28 2
    30 8.33 124 23.8 39 2.5
    HJ65-40-315A 14 3.89 111.2 2900 18.1 42.5 2
    23.4 6.5 109.5 18.36 25 2
    28 7.78 108.8 22.12 38 2.5
    HJ65-40-315B 13.2 3.67 98 2900 14.69 40 2
    22 6.11 96.5 15.63 24 2
    26.4 7.33 95.9 17.67 37 2.5
    HJ65-40-315 7.5 2.08 32.4 1450 3 39 1
    12.5 3.47 32 3.3 22 1
    15 4.17 31.7 3.5 33 1.2
    HJ65-40-315A 7 1.94 28.4 1450 2.84 37 1
    11.7 3.25 28 2.78 31 1
    14 3.89 27.8 3.12 34 1.2
    HJ80-65-125 30 8.33 23.2 2900 3.16 60 3
    50 13.9 20 3.95 69 3
    60 16.7 17.6 4.29 67 4
    HJ80-65-125A 27.2 7.56 19.1 2900 2.48 57 3
    45.3 12.58 16.5 3.04 67 3
    54.4 15.12 14.5 3.36 64 4
    HJ80-65-125 15 4.17 5.8 1450 0.44 54 1.5
    25 6.94 5 0.53 64 1.5
    30 8.33 4.4 0.58 62 1.7
    HJ80-65-125A 13.6 3.78 4.8 1450 0.349 51 1.5
    22.6 6.28 4.1 0.407 62 1.5
    27.2 7.56 3.6 0.452 59 1.7
    HJ80-65-160 30 8.33 36 2900 5.16 57 2
    50 13.9 32 6.5 67 2.3
    60 16.7 28.4 7.14 65 3.3
    HJ80-65-160A 27.2 7.56 29.7 2900 4.08 54 2
    45.4 12.6 26.4 5.02 65 2.3
    54.4 15.12 23.4 5.39 62 2.3
    HJ80-65-160 15 4.17 9 1450 0.74 50 1.1
    25 6.94 8 0.88 62 1.1
    30 8.33 7.2 0.95 62 1.3
    HJ80-65-160A 13.6 3.78 7.4 1450 0.58 47.3 1.1
    22.7 6.31 6.6 0.68 60 1.1
    27.2 7.56 5.9 0.74 59 1.3
    HJ80-50-200 30 8.33 55.2 2900 8.5 53 2
    50 13.9 50 10.8 63 2.5
    60 16.7 45.2 11.9 62 3.2
    HJ80-50-200A 27.2 7.56 45.4 2900 6.73 0 2
    45.3 12.58 41 8.29 61 2.5
    54.4 15.12 37.2 9.35 59 3.2
    HJ80-50-200 15 4.17 13.5 1450 1.25 44 1.1
    25 6.94 12.5 1.49 57 1.1
    30 8.33 11.5 1.6 58 1.3
    HJ80-50-200A 13.6 3.78 11.1 1450 1 41 1.2
    22.7 6.31 10.3 1.135 56.1 1.2
    27.2 7.56 9.5 1.28 55 1.4
    HJ80-50-250 30 8.33 84 2900 16 43 2.5
    50 13.9 80 20.6 53 2.5
    60 16.7 75 22.7 54 2.5
    HJ80-50-250A 28.14 7.82 73.55 2900 13.2 42.7 2.5
    46.9 13.03 70.5 16.1 56 2.5
    56.28 15.63 67.4 17.8 58.03 3
    HJ80-50-250B 26.4 7.33 64.8 2900 11.4 40.86 2.5
    44 12.22 62.2 13.8 54 2.5
    52.8 14.67 60 15 50 3
    HJ80-50-250 15 4.17 21 1450 2.15 51 2
    25 6.94 20 2.72 50 1.2
    30 8.33 18.8 3.01 51 1.2
    HJ80-50-250A 14.04 3.9 18.2 1450 1.66 42 1.5
    23.4 6.5 17.6 2.25 50 1.2
    28.08 7.8 16.7 2.63 48.5 1.2
    HJ80-50-315 30 8.33 128 2900 33.1 38 1.5
    50 13.9 125 34.1 50 2.5
    60 16.7 123 38 53 3
    HJ80-50-315A 28.14 7.82 113.4 2900 21.5 40.4 2
    46.9 13.03 110 28.1 50 2
    56.28 15.63 107.7 30 55 2.5
    HJ80-50-315B 26.4 7.33 100.5 2900 17 43.5 2
    44 12.22 97 24.2 48 2
    52.8 14.67 95 25 54.6 2.5
    HJ80-50-315 15 4.17 32.5 1450 3.59 37 1
    25 6.94 32 4.54 48 1
    30 8.33 31.5 4.95 52 1.2
    HJ80-50-315A 14.1 3.92 29.2 1450 3.52 31.8 1
    23.5 6.53 28.3 4.12 44 1
    28.2 7.83 27.1 4.41 47.2 1.2
    HJ100-80-125 60 16.7 23.7 2900 5.96 65 3
    100 27.8 20 7.47 73 4.2
    120 33.3 16.3 7.72 69 4.8
    HJ100-80-125A 55 15.3 19.4 2900 4.68 62 3
    91.8 25.5 16.8 5.9 71 4.2
    109 30.5 13.7 6.12 67 4.8
    HJ100-80-160 60 16.7 37 2900 10.1 60 3.8
    100 27.8 32 11.9 73 4.3
    120 33.3 28 12.5 73 5
    HJ100-80-160A 54.6 15.17 30.6 2900 7.98 57 3.8
    91 25.28 26.5 9.25 71 4.3
    109.2 30.34 23.2 9.85 70.4 5
    HJ100-80-160 30 8.33 9.25 1450 1.3 58 2.1
    50 13.9 8 1.58 69 2.1
    60 16.7 7 1.68 68 2.3
    HJ100-80-160A 27.3 7.58 7.66 1450 1.03 55.3 2.1
    45.5 12.64 6.6 1.22 67 2.1
    54.6 15.16 5.8 1.32 65.3 2.3
    HJ100-65-200 60 16.7 56 2900 14.5 63 3.4
    100 27.8 50 18.9 72 3.9
    120 23.3 44 20.3 71 5.2
    HJ100-65-200A 54.6 15.17 46.5 2900 11.5 60.1 3.4
    91 25.28 41.5 14.7 70 3.9
    109.2 30.34 36.6 16 68 5.2
    HJ100-65-200 30 8.33 14 1450 1.91 60 1.8
    50 13.9 12.5 2.5 68 1.8
    60 16.7 11 2.85 63 2.1
    HJ100-65-200A 27.3 7.58 11.6 1450 1.51 57 1.8
    45.5 12.64 10.3 1.83 66 1.8
    54.6 15.16 9.1 2.52 60.1 2.1
    HJ100-65-250 60 16.7 88 2900 25.2 57 3
    100 27.8 80 32 68 3.6
    120 33.3 74 36.1 67 4.5
    HJ100-65-250A 56.11 15.58 77 2900 21.8 54 3
    93.5 25.97 70 27.4 65 3.6
    112.2 31.16 64.7 30.9 64 4.5
    HJ100-65-250B 52.7 14.64 67.9 2900 18.3 53.3 3
    87.8 24.39 61.7 23.1 64 3.6
    105.4 29.28 57 26 62.9 4.5
    HJ100-65-250 30 8.33 22 1450 3.6 50 1.8
    50 13.9 20 4.3 63 1.8
    60 16.7 18.5 4.7 64 2.1
    HJ100-65-250A 28 7.79 19.2 1450 3.12 47 1.8
    45.5 12.64 17.4 3.53 61 1.8
    56 15.58 16.2 4.06 60.9 2.1
    HJ100-65-315 60 16.7 132 2900 44.9 48 2.8
    100 27.8 125 54.9 62 3.2
    120 33.8 119 60.8 64 4.2
    HJ100-65-315A 56.1 15.58 115.5 2900 39.2 45 2.8
    93.5 25.97 109 45.5 61 3.2
    112.2 31.16 104 52.1 61 4.2
    HJ100-65-315B 52.7 14.64 102 2900 33.3 44 2.8
    88 24.44 97 38.7 60 3.2
    105.4 29.28 92 44 60 4.2
    HJ100-65-315 30 8.33 33.5 1450 6.2 44 1.6
    50 13.9 32 7.5 58 1.6
    60 16.7 30.5 8.3 60 1.9
    HJ100-65-315A 28 7.79 29.3 1450 5.46 41 1.6
    46.5 12.92 28 6.33 56 1.6
    56 15.58 26.7 7.15 57 1.9
    HJ125-80-160 2900
    160 44.4 32 17.7 79 5.3
    HJ125-80-200 2900
    160 44.4 50 28.3 77 4.3
    HJ125-80-250 2900
    160 44.4 80 47.1 74 4
    HJ125-100-200 120 33.3 61 2900 29.3 68 4.5
    200 55.6 50 35.4 77 5
    240 66.7 41 38.3 70 5.8
    HJ125-100-200A 109.1 30.3 50.5 2900 23.1 64.9 4.5
    182 50.56 41.4 27.4 75 5
    218.2 60.6 34 30.1 67.1 5.8
    HJ125-100-200 60 16.7 15.25 1450 3.89 64 2.5
    100 27.8 12.5 4.66 73 2.9
    120 33.3 10.25 5.08 66 3.6
    HJ125-100-200A 54.7 15.2 12.6 1450 3.08 61 2.5
    91 25.28 10.3 3.6 71 2.9
    109.4 30.4 8.5 4.02 63 3.6
    HJ125-100-250 120 33.3 90 2900 47.4 62 3.7
    200 55.6 80 58.1 75 4.5
    240 66.7 73 64.5 74 5.5
    HJ125-100-250A 112 31.1 78 2900 40.3 59 3.7
    186.5 51.8 69.5 48.35 73 4.5
    224 62.2 63.5 54.5 71 5.5
    HJ125-100-250B 105.5 29.3 69 2900 34.2 58 3.7
    175.5 48.75 61.5 41.4 71 4.5
    211 58.6 56 46 69.9 5.5
    HJ125-100-250 60 16.7 22.5 1450 6.23 59 2
    100 27.8 20 7.56 72 2.3
    120 33.3 18.25 8.4 71 3
    HJ125-100-250A 56 15.56 19.5 1450 5.31 56 2
    93 25.83 17.4 6.29 70 2.3
    112 31.1 15.9 7.13 68 3
    HJ125-100-315 120 33.3 132.5 2900 65.3 52.6 4
    200 55.6 125 94.6 72 4.5
    240 66.7 120 103 75 5
    HJ125-100-315 60 16.7 33.5 1450 10.3 53 2.5
    100 27.8 32 13.5 65 2.5
    120 33.3 30.5 15.1 66 3
    HJ125-100-400 60 16.7 52 1450 17.7 48 2.5
    100 27.8 50 24.8 55 2.5
    120 33.3 58.5 25.5 62 3
    HJ125-100-400A 54.6 15.17 46 1450 13 44 2.4
    91 25.28 41 19 51 2.5
    109.2 30.34 36.6 19.6 58 3
    HJ150-125-250 120 33.3 24.8 1450 12.3 66 2.5
    200 55.6 20 14.1 77 2.8
    240 66.7 15 14.4 68 3.5
