Flow rate |
Q=100~5000m³/h |
Lift |
H=3~30m |
Speed |
n=485~1450r/min |
Design pressure |
pS1.6MPa |
Using temperature seat |
T=-40℃~150℃ |
Flow rate |
Q=100~5000m³/h |
Lift |
H=3~30m |
Speed |
n=485~1450r/min |
Design pressure |
pS1.6MPa |
Using temperature seat |
T=-40℃~150℃ |

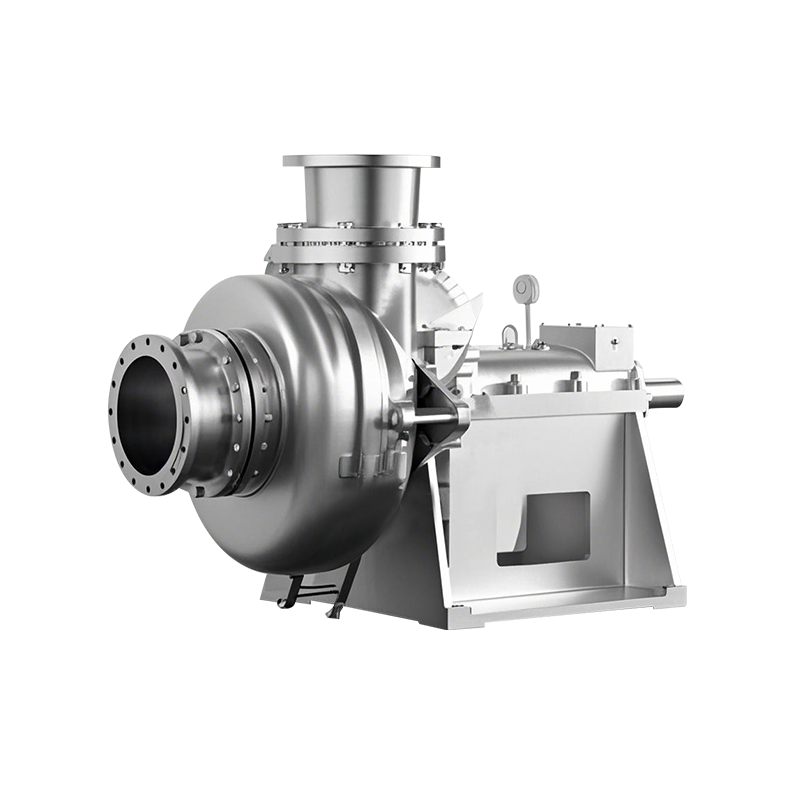

The mixed-flow pump is a single-stage, radially split, cantilever-style pump. It is mounted horizontally with base feet and is adept at conveying large volumes of fluid at low head, handling both clean and contaminated mediums with high efficiency and low energy consumption. This pump is versatile, suitable for various acids, alkalis, saline solutions, and corrosive liquids at low to medium temperatures, as well as mediums containing solid particles. The pump casing is supported by feet and features a "front pull-out" design, allowing for easy inspection, impeller, and shaft seal removal without disconnecting the pump from the pipeline, simplifying maintenance.
The pump's support feet are designed to bear any load from the pipeline and transfer it directly to the foundation, ensuring that the rotor remains unbent under load, thereby safeguarding the longevity of the shaft seal and bearings. The pump unit can be equipped with a complete venting system to facilitate the expulsion of air from the suction pipeline. The shaft seal may employ a double mechanical seal with external cooling and flushing water, enhancing the working conditions of the seal and extending its service life.
Characteristics: The mixed-flow pump offers a flow rate greater than that of a centrifugal pump but less than an axial-flow pump; its head is higher than that of an axial-flow pump but lower than a centrifugal pump.
Jiangsu Feixiang Pump Manufacturing Co., Ltd. was founded in the 1980s. In 2001, Jiangsu Feixiang Pump Manufacturing Co., Ltd. was established by the Company Law. The company integrates scientific research, design, production, operation and service, and its corporate nature is a limited liability. It is now a member factory of the sound material resources network of Sinopec Group Corporation, a satisfactory network member factory of refining supplies and accessories of China National Petroleum Corporation, a key enterprise in the high-tech intensive zone of Jiangsu Province, an enterprise that abides by contracts and keeps promises, and the China General Mechanical Pump Industry Association. Member, self-operated import and export enterprise of the People's Republic of China.
The company has five workshops including casting, machining, fluoroplastic pump pressing, final assembly, and paint packaging, and five one-room functional departments including sales, technology, production, quality inspection, finance, and comprehensive office. It currently has 256 employees, including 5 senior engineers, 28 engineers, 136 technicians, and 66 managers of various types. The company covers an area of 38,000 m2 and has fixed assets of 18 million yuan. The company has complete production equipment, physical and chemical testing, and testing equipment, and has a high-quality water pump performance testing center (measuring range flow: 0.5-20000m3/h, head: 2-2900m). The main products are produced using international standards and advanced foreign standards. Mixed-Flow Pump Manufacturers in China, Mixed-Flow Pump Factory.
The company's reputable products include 26 series and 460 specifications and varieties. The main products are FXLB type non-clogging cyclone pump, ZA, CZ type chemical process pump, ZE type high-temperature pump, IJT type titanium nickel chemical pump, FIJ type alkali pump, IH type chemical centrifugal pump, FXP rotary jet pump, DF type multi-stage pump, WFB type sealless self-control self-priming pump, FSB type fluorine alloy pump, FIEC type dilute acid pump, FIU mortar pump, FYL type long Shaft submersible pump, SPP type chemical mixed flow pump, FJX type forced circulation pump, FCJ, FHJ desulfurization pump, JFRB double suction melt urea pump, JYM diaphragm metering pump, rotor pump, HZP type slurry pump, ZXB type self-priming Pump, OTS double suction pump, etc. supply Wholesale Mixed-Flow Pump.
The main materials of the product are 304, 304L, 316, 316L, CD4MCu, 904L, Mo3Ti, 20# alloy, TA2, TA3 pure titanium, TA9 titanium palladium alloy, Hastelloy, F46 fluoroplastic alloy, UHMWPE, steel lining, corrosion-resistant and wear-resistant rubber wait.
Feixiang products sell well all over the country and are widely used in petroleum, petrochemical, chemical, metallurgy, electric power, mining, medicine, light industry, food, automobile manufacturing, papermaking, environmental protection and other industries; among them, FXLB type non-clogging cyclone pump and FIEC type dilute acid pump, FIU mortar pump, JFRB double suction molten urea pump, IJT type titanium nickel chemical pump, FXP rotary jet pump and other products are widely used in petroleum, petrochemical, chemical, electric power, metallurgy, fertilizer and other industries to replace imported products, and are deeply loved by the majority of users favor.
