ZD Self-Balancing High Temperature Multi-Stage Pump

Self-balancing multi-stage centrifugal pump:Using advanced hydraulic models, we independently develop high-efficiency and energy-saving products; since the self-balancing symmetrical multi-stage pump rotor has no wear and axial pulsation of the balance plate, the alignment of the impeller and guide vane is always in ideal condition, and there is no Like the ordinary multi-stage pump structure, the efficiency drops significantly as the balance plate wears and the rotor parts move forward; and there is no leakage of balance water, which reduces the volume loss, improves the overall operating efficiency of the pump, and reduces the shaft power. The efficiency is on average 2%-3% higher than that of ordinary multi-stage pumps.
Get A Quote
PREV：No previous article
NEXT：IN Type Jacketed Thermal Insulation Centrifugal Pump
  • Introduction
  • Parameter
  • Product Configuration Table

  • Performance parameter table
    (1) Type 12-25

    Specification and model series Flow rate
    (m³/h)    		 Head
    (m)    		 Rotational speed
    (r/min)    		 Efficiency
    (%)    		 Shaft power
    (KW)    		 Motor power
    (KW)    		 Necessary cavitation allowance
    (m)
    12-25 3  7.5
    12.5
    15    		 87
    75
    63    		 2950  44
    48
    46    		 4.0
    5.3
    5.6    		 7.5  2.0
    2.0
    2.5
    4  116
    100
    84    		 5.4
    7.1
    7.5    		 11
    5  145
    125
    105    		 6.7
    8.9
    9.3    		 15
    6  174
    150
    126    		 8.1
    10.6
    11.2    		 15
    7  203
    175
    147    		 9.4
    12.4
    13.1    		 18.5
    8  232
    200
    168    		 10.8
    14.2
    14.9    		 22
    9  261
    225
    189    		 12.1
    16.0
    16.8    		 22
    10  290
    250
    210    		 13.5
    17.7
    18.6    		 30
    11  319
    275
    231    		 14.8
    19.5
    20.5    		 30
    12  348
    300
    252    		 16.2
    21.3
    22.4    		 30

    (2) Type 12-50

    Specification and model series Flow rate
    (m³/h)    		 Head
    (m)    		 Rotational speed
    (r/min)    		 Efficiency
    (%)    		 Shaft power
    (KW)    		 Motor power
    (KW)    		 Necessary cavitation allowance
    (m)
    12-50 3  7.5
    12.5
    15    		 171
    150
    123    		 2950  36
    39
    37    		 9.7
    13.1
    13.6    		 18.5  2.0
    2.0
    2.5
    4  228
    200
    164    		 12.9
    17.5
    18.1    		 30
    5  285
    250
    205    		 16.2
    21.8
    22.6    		 30
    6  342
    300
    246    		 19.4
    26.2
    27.2    		 37
    7  399
    350
    287    		 22.6
    30.5
    31.7    		 37
    8  456
    400
    328    		 25.9
    34.9
    36.2    		 45
    9  513
    450
    369    		 29.1
    39.3
    40.7    		 55
    10  570
    500
    410    		 32.3
    43.6
    45.3    		 55
    11  627
    550
    451    		 35.6
    48.0
    49.8    		 75
    12  684
    600
    492    		 38.8
    52.4
    54.3    		 75

    (3) Type 25-30

    Specification and model series Flow rate
    (m³/h)    		 Head
    (m)    		 Rotational speed
    (r/min)    		 Efficiency
    (%)    		 Shaft power
    (KW)    		 Motor power
    (KW)    		 Necessary cavitation allowance
    (m)
    25-30 3  15
    25
    31    		 102
    90
    75    		 2950  50
    54
    51    		 8.3
    11.3
    12.4    		 18.5  2.2
    2.2
    2.4
    4  136
    120
    100    		 11.1
    15.1
    16.5    		 22
    5  170
    150
    125    		 13.8
    18.9
    20.6    		 30
    6  203
    180
    150    		 16.6
    22.7
    24.7    		 30
    7  237
    210
    174    		 19.4
    26.5
    28.9    		 37
    8  271
    240
    199    		 22.2
    30.3
    33.0    		 45
    9  305
    270
    224    		 24.9
    34.0
    37.1    		 45
    10  339
    300
    249    		 27.7
    37.8
    41.2    		 55
    11  373
    330
    274    		 30.5
    41.6
    45.3    		 55
    12  407
    360
    299    		 33.2
    45.4
    49.5    		 75

  • The ZD-type self-balancing brand symmetrical horizontal multi-stage pump is to meet the needs of users and accelerate the development of high-pressure multi-stage pump technology. It adopts the advanced technology of similar foreign products combined with the company's many years of design experience and uses the hydraulic model of high-efficiency energy-saving products recommended by the country. , a high-efficiency, high-pressure multi-stage centrifugal pump product researched and developed in accordance with API610 standards; it is a technology leader in the industry. It has the advantages of a wide efficient area, wide performance range, good cavitation performance, few wearing parts, and convenient installation and maintenance. The reliability is greatly improved, the trouble-free running time is more than 3 times that of ordinary pumps, and user maintenance costs are greatly reduced, thus reducing the life cycle cost of the pump. The high-pressure self-balancing segmental centrifugal pump innovates the structural form of the traditional multi-stage centrifugal pump. It cancels the axial force balancing mechanism of the multi-stage centrifugal pump. It is a D and DG multi-stage centrifugal pump using a balance plate or balance drum structure. Pump to good replacement. Since there is no balancing device, that is, there is no disk friction loss of the balance plate and no balance return loss, the pump efficiency is 5-14% higher than that of the same type of multi-stage pump. At the same time, it completely solves the problem of the balance plate and balance plate seat caused by the failure of the balance device. Wear or rotor seizure and other faults can greatly extend the service life of the pump. Years of operation have proven that the performance of this product has reached the advanced level of similar international products.

Factory

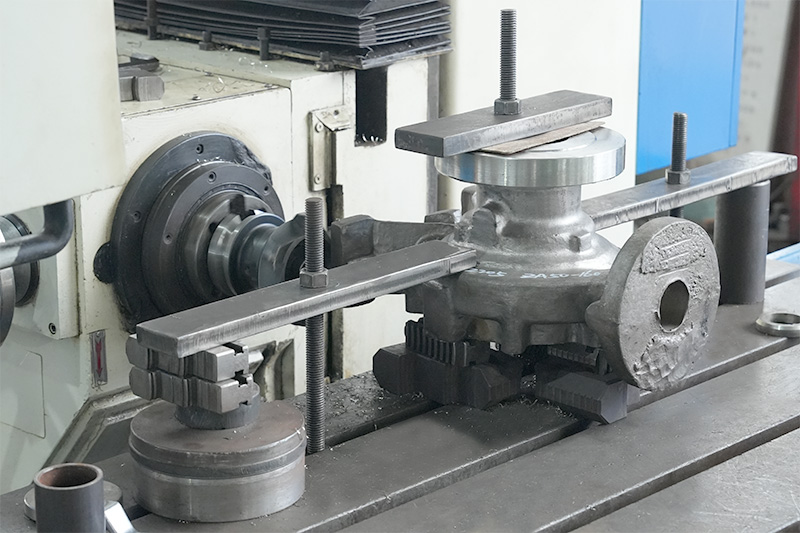

  • Plant equipment
  • Plant equipment
  • Plant equipment
  • Plant equipment
  • Plant equipment
  • Plant equipment
  • Plant equipment
  • Plant equipment
  • Operation Process
  • Operation Process


Related Products

About Us
Jiangsu Feixiang Pump Manufacturing Co., Ltd.

Jiangsu Feixiang Pump Manufacturing Co., Ltd. was founded in the 1980s. In 2001, Jiangsu Feixiang Pump Manufacturing Co., Ltd. was established by the Company Law. The company integrates scientific research, design, production, operation and service, and its corporate nature is a limited liability. It is now a member factory of the sound material resources network of Sinopec Group Corporation, a satisfactory network member factory of refining supplies and accessories of China National Petroleum Corporation, a key enterprise in the high-tech intensive zone of Jiangsu Province, an enterprise that abides by contracts and keeps promises, and the China General Mechanical Pump Industry Association. Member, self-operated import and export enterprise of the People's Republic of China.

The company has five workshops including casting, machining, fluoroplastic pump pressing, final assembly, and paint packaging, and five one-room functional departments including sales, technology, production, quality inspection, finance, and comprehensive office. It currently has 256 employees, including 5 senior engineers, 28 engineers, 136 technicians, and 66 managers of various types. The company covers an area of ​​38,000 m2 and has fixed assets of 18 million yuan. The company has complete production equipment, physical and chemical testing, and testing equipment, and has a high-quality water pump performance testing center (measuring range flow: 0.5-20000m3/h, head: 2-2900m). The main products are produced using international standards and advanced foreign standards.

The company's reputable products include 26 series and 460 specifications and varieties. The main products are FXLB type non-clogging cyclone pump, ZA, CZ type chemical process pump, ZE type high-temperature pump, IJT type titanium nickel chemical pump, FIJ type alkali pump, IH type chemical centrifugal pump, FXP rotary jet pump, DF type multi-stage pump, WFB type sealless self-control self-priming pump, FSB type fluorine alloy pump, FIEC type dilute acid pump, FIU mortar pump, FYL type long Shaft submersible pump, SPP type chemical mixed flow pump, FJX type forced circulation pump, FCJ, FHJ desulfurization pump, JFRB double suction melt urea pump, JYM diaphragm metering pump, rotor pump, HZP type slurry pump, ZXB type self-priming Pump, OTS double suction pump, etc.

The main materials of the product are 304, 304L, 316, 316L, CD4MCu, 904L, Mo3Ti, 20# alloy, TA2, TA3 pure titanium, TA9 titanium palladium alloy, Hastelloy, F46 fluoroplastic alloy, UHMWPE, steel lining, corrosion-resistant and wear-resistant rubber wait.

Feixiang products sell well all over the country and are widely used in petroleum, petrochemical, chemical, metallurgy, electric power, mining, medicine, light industry, food, automobile manufacturing, papermaking, environmental protection and other industries; among them, FXLB type non-clogging cyclone pump and FIEC type dilute acid pump, FIU mortar pump, JFRB double suction molten urea pump, IJT type titanium nickel chemical pump, FXP rotary jet pump and other products are widely used in petroleum, petrochemical, chemical, electric power, metallurgy, fertilizer and other industries to replace imported products, and are deeply loved by the majority of users. favor.
